Three Pass Wet Back Boiler: Technology, ZOZEN Solutions & After-Sales Support

Part 1: Understanding Three Pass Wet Back Boiler Technology
The three pass wet back boiler represents a significant advancement in industrial steam generation, offering superior efficiency and reliability compared to conventional designs. This innovative boiler configuration features three distinct flue gas passages that maximize heat transfer while minimizing energy loss.
Key Characteristics of Three Pass Wet Back Boiler:
Enhanced Heat Transfer
Flue gases make three complete passes through the boiler
Increases heat exchange surface area
Wet Back Design Advantages
Rear combustion chamber is water-cooled (unlike dry-back designs)
Eliminates refractory maintenance issues
Extends boiler lifespan
Operational Benefits
Faster steam generation
Stable pressure maintenance
Compact footprint saves installation space
Fuel Flexibility
Compatible with natural gas, diesel, heavy oil, and dual-fuel systems
Maintains high efficiency across all fuel types
The three pass wet back boiler has become the industry standard for medium-capacity steam generation, particularly in food processing, chemical manufacturing, and textile industries where consistent steam quality is critical.
Part 2: ZOZEN Three Pass Wet Back Boiler Solutions
ZOZEN Boiler has perfected the three pass wet back boiler design through decades of engineering innovation, offering premium series tailored for different industrial needs:

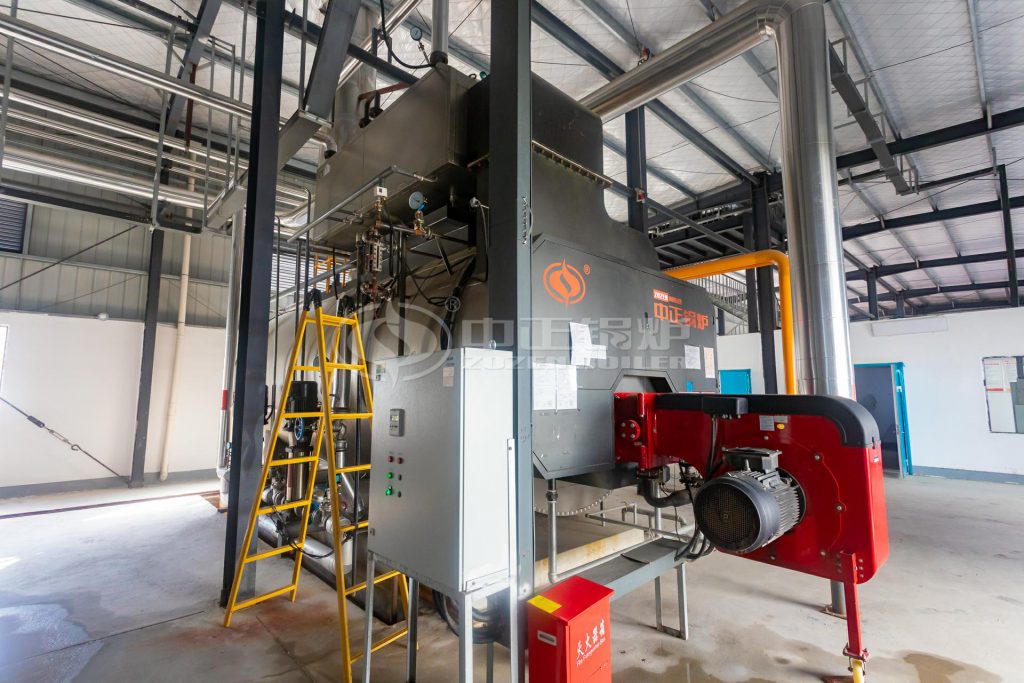

WNS Series Oil/Gas-Fired Boilers
WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Capacity Range: 1-20 tph
Working Pressure: 0.7-2 MPa
Thermal Efficiency: Up to 98%
Special Features:Corrugated furnace tube design ( more heat transfer surface)
Fully automatic PLC control system
ZOZEN’s Three Pass Wet Back Boiler Innovations:
Spiral Turbulator Tubes – Disrupts laminar flow for better heat transfer
Integrated Economizer – Recovers waste heat to boost efficiency
Smart Combustion System – Auto-adjusts air-fuel ratio for optimal performance
Modular Design – Reduces installation time compared to traditional boilers
All ZOZEN three pass wet back boiler units come with ASME, CE, and GB certifications, ensuring global compliance and safety.

Part 3: ZOZEN’s Comprehensive After-Sales Service for Three Pass Wet Back Boiler
ZOZEN distinguishes itself not just through superior three pass wet back boiler technology, but also through its industry-leading customer support:
1.Full Service
12 months free maintain service since delivery
24hous a day online customer service
365 days a year with no rest.
2.Installation & Commissioning
Provide detailed guidance for project installation
On-site supervision by certified engineers
Complete system testing before handover
3.Maintenance Programs
Predictive maintenance alerts
Annual efficiency audits
Tube cleaning and calibration services

4. Operator Training
Classroom and hands-on instruction
Customized training manuals
Annual refresher courses

5. Performance Optimization
Energy efficiency improvement plans
Retrofit services for older boilers
Fuel conversion assistance
Case Example: A Philippine food processing plant reported 20% lower maintenance costs and after enrolling in ZOZEN’s three pass wet back boiler service program.
PART 4 Strong comprehensive strength makes ZOZEN Quality
Wuxi ZOZEN Boilers Co., Ltd. has been committed to the research, development and production of industrial boilers since its foundation in 1988. ZOZEN has passed ISO9001:2015 and obtained PRC Grade A Manufacture License of Special Equipment (Boilers), ASME “S” (Power Boilers) and “U” (Pressure Vessels) stamps and many other international certificates of authorization.

Conclusion
The three pass wet back boiler represents the pinnacle of efficient steam generation technology, and ZOZEN has elevated this design through continuous innovation and unparalleled customer support. From its advanced WNS series boilers to its comprehensive after-sales network, ZOZEN delivers complete solutions that maximize uptime and minimize lifecycle costs. For industries seeking reliable, high-efficiency steam generation, ZOZEN’s three pass wet back boiler systems offer the perfect combination of cutting-edge engineering and service excellence.
