3 Tons Capacity Gas Fired Boiler

May 12, 2022

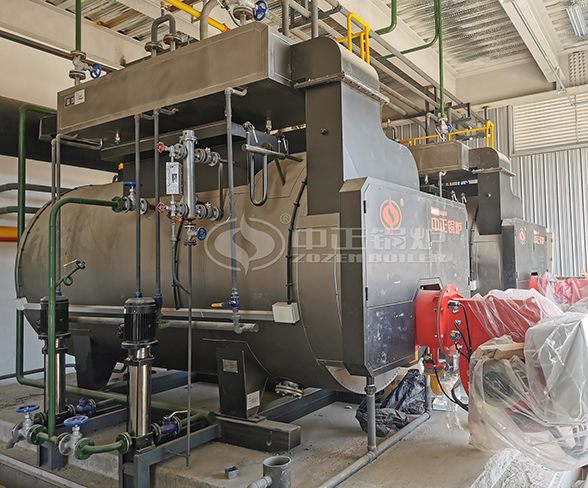

3 ton 1.25 mpa gas fired boiler
Basic Information

Capacity: 3 tons steam per hour

Pressure: 1.0Mpa (10 bar), 1.25Mpa (12.5 bar)

Fuel: Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.

Applicable Industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

Place of Origin: Jiangsu, China

Dimension(L*W*H): Depends on the boiler capacity

Port: Shanghai/Tianjin/Qingdao

3T WNS Series Gas Fired Boiler Project Images

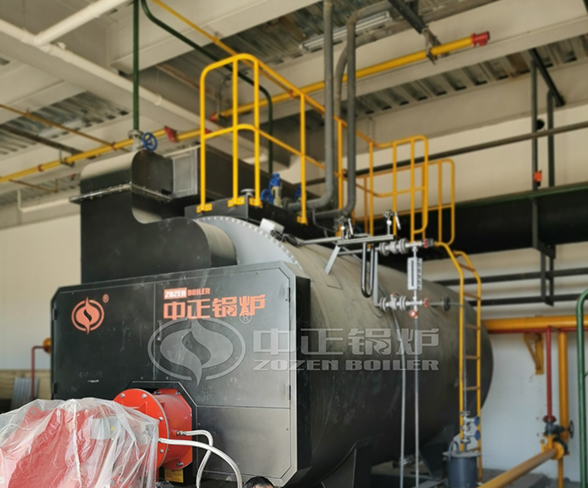

WNS 3tph gas steam boiler

condensing gas steam boiler

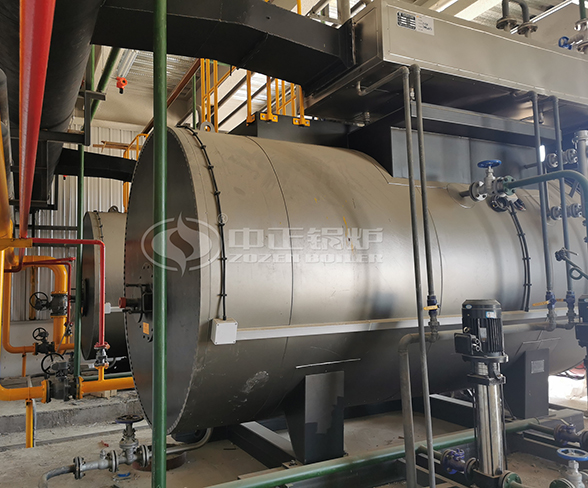

3ton gas fired steam boiler on site
Product Description
WSN series gas / oil fired industrial horizontal steam boiler is a kind of safety and high efficiency heating equipment with fully automatic intelligent control system. It’s a boiler shell type 3 passes wetback oil/gas fired boiler. Usually, the WNS series steam boilers widely used for industry production and processing, such as textile mill, medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, moreover, it could be used for central heating in enterprise, hotel, hospital, civil architecture, etc.
oil gas fired boiler
Technical Advantages
High Safety Performance

Fully automatic control system ensures normal running of combustion, water level, temperature and steam pressure.
Pressure controller, pressure transmitter, water level alarm, safety valve and other safety protection devices.
The smoke box door design with open window hinges makes inspection, cleaning and maintenance easier.

Easy Operation and Maintenance

WNS series horizontal steam boiler products in the design of the compact structure, can be opened the smoke box, man-hole, hand-hole, platform ladder and etc design also make it easier for customers to install and maintain.

High Efficiency

WNS series horizontal boiler adopts large diameter full corrugated furnace, which increases combustion space and combustion efficiency.
Through continuous optimization, the heat transfer coefficient of the special threaded smoke tube reaches 1.2 times that of the ordinary smoke tube when the selection of the contract pitch of the thread groove depth meets the minimum flow resistance.

oil gas boiler manufactring

Product Parameters
Model Rated steam capacity(t/h) Rated working pressure(Mpa) Rated steam temperature(℃)
WNS1-0.7-Y(Q) 1 0.7 170
WNS1-1.0-Y(Q) 1 1 184
WNS1.5-1.0-Y(Q) 1.5 1 184
WNS1.5-1.25-Y(Q) 1.5 1.25 194
WNS2-1.0-Y(Q) 2 1 184
WNS2-1.25-Y(Q) 2 1.25 194
WNS3-1.0-Y(Q) 3 1 184
WNS3-1.25-Y(Q) 3 1.25 194
WNS4-1.25-Y(Q) 4 1.25 194
WNS4-1.6-Y(Q) 4 1.6 204
WNS5-1.25-Y(Q) 5 1.25 194
WNS5-1.6-Y(Q) 5 1.6 204
WNS6-1.25-Y(Q) 6 1.25 194
WNS6-1.6-Y(Q) 6 1.6 204
WNS8-1.25-Y(Q) 8 1.25 194
WNS8-1.6-Y(Q) 8 1.6 204
WNS10-1.25-Y(Q) 10 1.25 194
WNS10-1.6-Y(Q) 10 1.6 204
WNS15-1.25-Y(Q) 15 1.25 194
WNS15-1.6-Y(Q) 15 1.6 204
WNS20-1.25-Y(Q) 20 1.25 194
WNS20-1.6-Y(Q) 20 1.6 204
