Three Pass Fire Tube Boiler: Design, ZOZEN Solutions, and Competitive Advantages

Part 1: Introduction to Three Pass Fire Tube Boiler
A Three pass fire tube boiler is a highly efficient steam generation system designed to maximize heat transfer while minimizing fuel consumption. Its name derives from the combustion gases’ three-directional journey through the boiler tubes, ensuring optimal energy utilization.
1.1 Working Principle
In a three pass fire tube boiler, hot gases travel through three distinct stages:
First Pass: Combustion gases flow through the main furnace tube.
Second Pass: Gases reverse direction and pass through a bundle of smaller tubes.
Third Pass: Gases make a final reversal through another set of tubes before exiting via the chimney.
This multi-directional flow extends heat exchange duration, boosting thermal efficiency , significantly higher than single-pass or double-pass designs.
1.2 Key Components
Shell: A cylindrical steel vessel containing fire tubes.
Fire Tubes: Three sets of tubes guiding flue gases.
Burner: Optimized for fuel types (gas, oil, or etc ).
Safety Systems: Pressure relief valves, water level controls, and temperature sensors.
1.3 Applications
Three pass fire tube boilers are ideal for industries requiring stable, high-pressure steam, including:
Food processing
Textile manufacturing
Chemical plants
Hospitals and district heating

Part 2: ZOZEN’s 3 Pass Fire Tube Boiler Product Series
ZOZEN Boiler, a global leader in industrial boiler manufacturing, offers advanced 3 pass fire tube boiler solutions tailored to diverse operational needs.

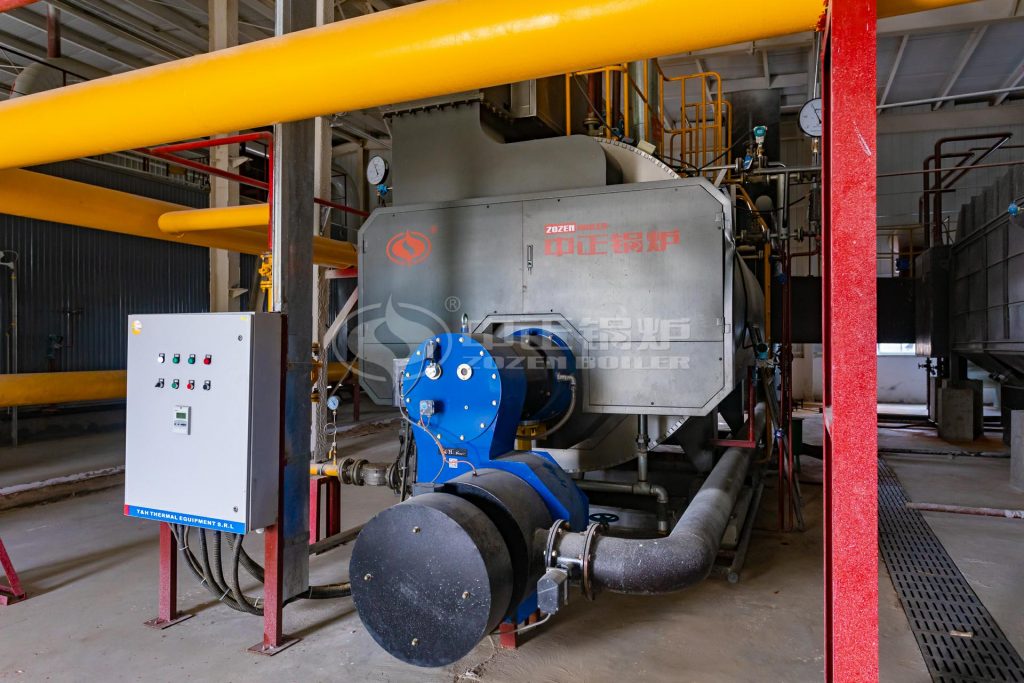

WNS series gas-fired (oil-fired) steam boiler

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Thermal capacity :1-20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital, etc.

Part 3: Advantages of ZOZEN’s Three Pass Fire Tube Boiler
ZOZEN’s three pass fire tube boilers stand out in the global market due to their innovative engineering and customer-centric design.
3.1 Unmatched Energy Efficiency
Extended Heat Retention: The three-pass design increases flue gas residence time and extract maximum heat.
Corrugated Furnace: Patented wavy furnace tubes expand heat transfer area , achieving 98% efficiency.
Condensing Technology (Optional): Recovers waste heat from exhaust gases, reducing fuel costs .
3.2 Enhanced Durability
Anti-Corrosion Treatment: Shot-blasting and epoxy coatings extend lifespan.
Robust Safety: Multi-level protections against overpressure, dry-firing, and overheating.

3.3 Environmental Compliance
Low Emissions: Integrated low-NOx burners and gas recirculation systems keep low emissions
Waste Heat Recovery: Optional economizers cut carbon footprint.
3.4 Cost-Effectiveness
Easy Maintenance: Large inspection ports and modular components minimize downtime.
Global Certifications: ASME, CE, and GB certifications ensure compliance.
3.5 Customization Options
Pressure Customization: Tailored pressure ranges for specialized processes.
Smart Upgrades: IoT-enabled controls for remote monitoring and predictive maintenance.

Conclusion
The three pass fire tube boiler remains a cornerstone of industrial steam generation due to its efficiency and reliability. ZOZEN Boiler elevates this technology through cutting-edge designs like the WNS series, offering unmatched energy savings, durability, and environmental performance. By choosing ZOZEN’s three pass fire tube boilers, industries future-proof their operations while achieving significant cost reductions.
